EMS

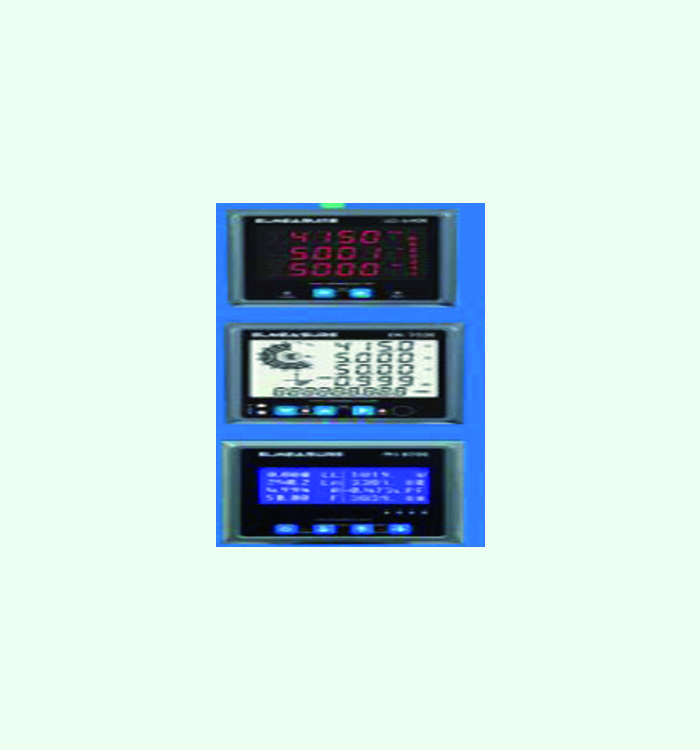

Demand Prediction based on sliding or fixed.

Max Demand 4 high/4 low, 12 am snapshot, 31st day snapshot

Demand update every second to forecast KVA, KW & KVAR concurrently

Either 2 or 4 Relay outputs for circuit breaker or contactor control for demand controller

Optional 8 Demand and Energy TOD slots

Captures and measures power quality events: K Factor, Crest factor, Sag/Swell, Interruption and unbalance in accordance with EN 50160

Record events such as Sag/Swell for voltage with the
time stamp in 1s duration

Representation of waveforms for instantaneous V,I, Sag/Swell. Voltage and Current harmonics histogram
(PN only)

Phase wise voltage sag/swell waveforms (PN only)

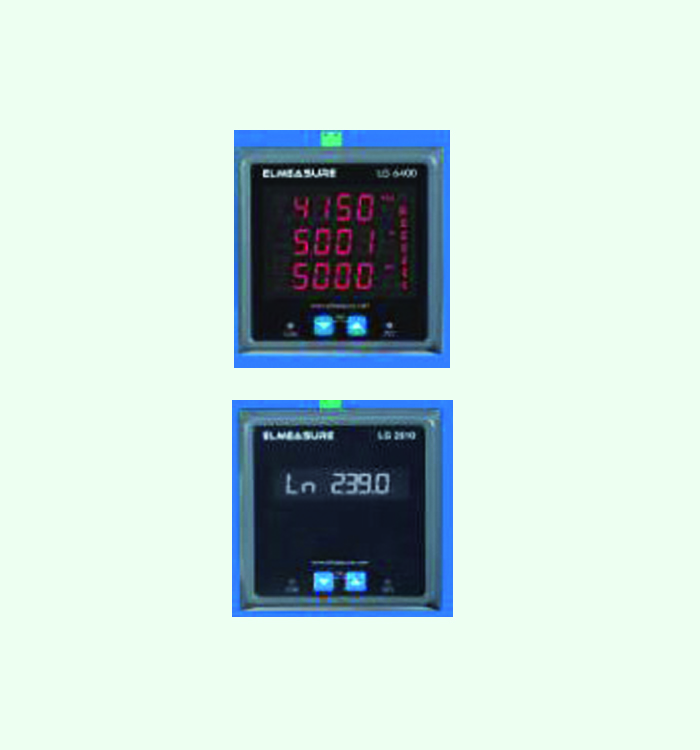

Most Compact 96x96x47mm with communication

Low Starting Current 6mA (for LG) 50mA (for µG)

Wide Measurement Range 6mA to 6A (for LG) 50mA to 6A (for µG)

High sampling rate 128 samples/cycle

Individual phase wise energy through communication

Dynamic communication register map

Field programmable full scale or offset value

DC Vin - 10V ?48V/100V/500V/800V,
DC Ain - 50mV to 100mV (factory set)

DC 0 to 20mA / 4 to 20mA analog input options-Programmable at site

Universal auxiliary input of 40 to 300V AC/DC for
96x48mm size (Micro series)
